A Tiled Roof House Extension

An Ultraroof house extension is the ideal way for you to offer your customers a house extension that combines a tiled roof with super insulated columns or brick piers, combining the best in aesthetics and thermal performance. This design comprises lightweight tiles, a vaulted ceiling, and full glazed panels.

Super insulated columns achieve a standard of thermal efficiency that is five times more effective than brick piers of equivalent size.

Insulated internal pelmet offers an increased degree of thermal efficiency, with the option to house spotlights and speakers.

Comprises a minimum of four large corner columns, plus a number of in-line columns that will vary depending upon extension style.

Available with a range of cornice options, including 1 tier, 2 tier, 3 tier, and curved designs to suit a range of demographics.

Manufactured to post-code specifications to handle the wind and snow loads of a specific area, reducing potential after sales.

Features full-length glass panels that enable natural light to enter the extension, capturing a bright and spacious living area.

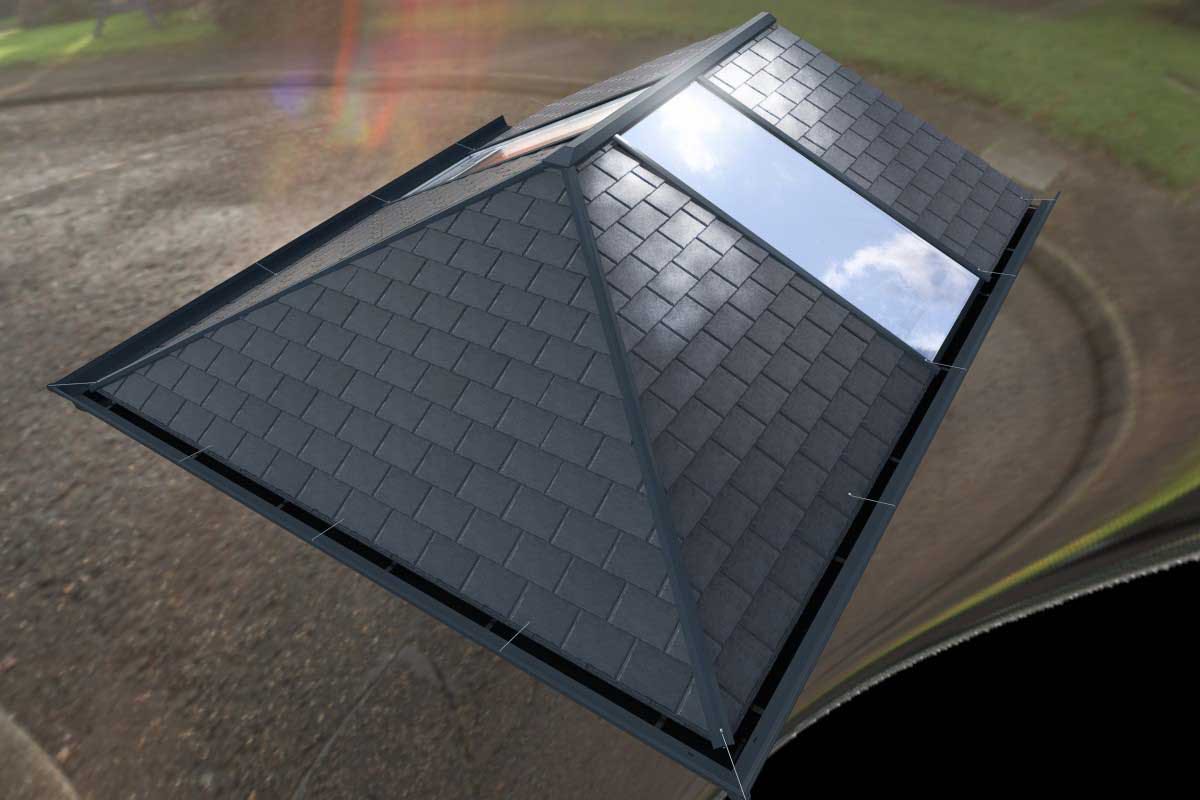

Ultraroof Tiled Roof

  1. UltraTile in 3 colours
  2. High-performance breathable waterproofing underlayer
  3. Powder coated tile starter support
  4. OSB/3 Boards -Suitable for load bearing applications in humid conditions
  5. Ultrapanel, 0.17W/m2 ºC
Ultraframe Ultraroof

1

2

3

4

5

Super Insulated Columns

  • Clad in powder coated aluminium, featuring a plain or fluted infill panel.
  • Fitted in large, small, full height, sat on a low wall, or as inline columns.
  • Five times more thermally efficient than a brick pier of equivalent size.
  • Colour matched to windows and doors via the full RAL spectrum.
  • Installed in minutes with no need for wet trades.

Insulated Perimeter Pelmet

  • Colour-matched to suit a wide range of property styles and personal tastes.
  • Available at a width of 800m, fitted to room proportions to suit needs.
  • Filled with insulation to increase overall heat retention in the property.
  • Able to house a range of spotlight and speaker options to room uses.
  • Can be used from 15 - 40 degrees.

Decorative Cornices

  • Available in a 1 tier, 2 tier, 3 tier, or curved cornice option to help suit more properties.
  • Curved design includes a die cast 135° and 90° corner cover as well as straight jointers.
  • Offered in four standard colours or any RAL colour, matching windows and doors.
  • Hides end caps, gutters, brackets & trims to tidy up the roof and frame interface.
  • 1, 2 & 3 tier Cornice ONLY 90° corners and straight jointers available.

Simple Process

  • Survey.
  • Design & Price.
  • Itinerary.
  • Building and Completion.
  • Sign off.

Ultraroof

  • Only lightweight tiled roof to be independently and fully fire tested.
  • No cutting or drilling required, components labelled for quick fit.
  • Superior strength for larger designs, never needs a tie bar.
  • Three simple structure components: beams, SIPs, ridge.
  • 4M spans for bi-folds without the need for extra support.

Modern Design

  • Available in double hipped with a box gutter, hipped lean-to, Georgian, and lean-to shapes.
  • Compliant with all current building and planning permission regulations.
  • Easily tailored to suit both modern and traditional homes alike.
  • ‘A++’ rated thermal efficiency, U-Value of <0.5 W/m2k.
  • Accompanied by a comprehensive 10-year guarantee.
Tiled Roof Details Worcester Worcestershire

1

2

3

4

Ultraroof Ridge Assembly

  1. New Simplified Glazing Bar Attachment - For Faster Glazing
  2. External Panel Clips - No Battening Needed
  3. 'I' Beam Edged Panels - For Increased Projections
  4. New Preset Insulated Ridge

Upgrade Options

  1. 3 distinct tile colours to match the roof of the house.
  2. Velux windows available for increased ventilation.
  3. Curved decorative cornice available.
Tiled Roof Worcester Worcestershire

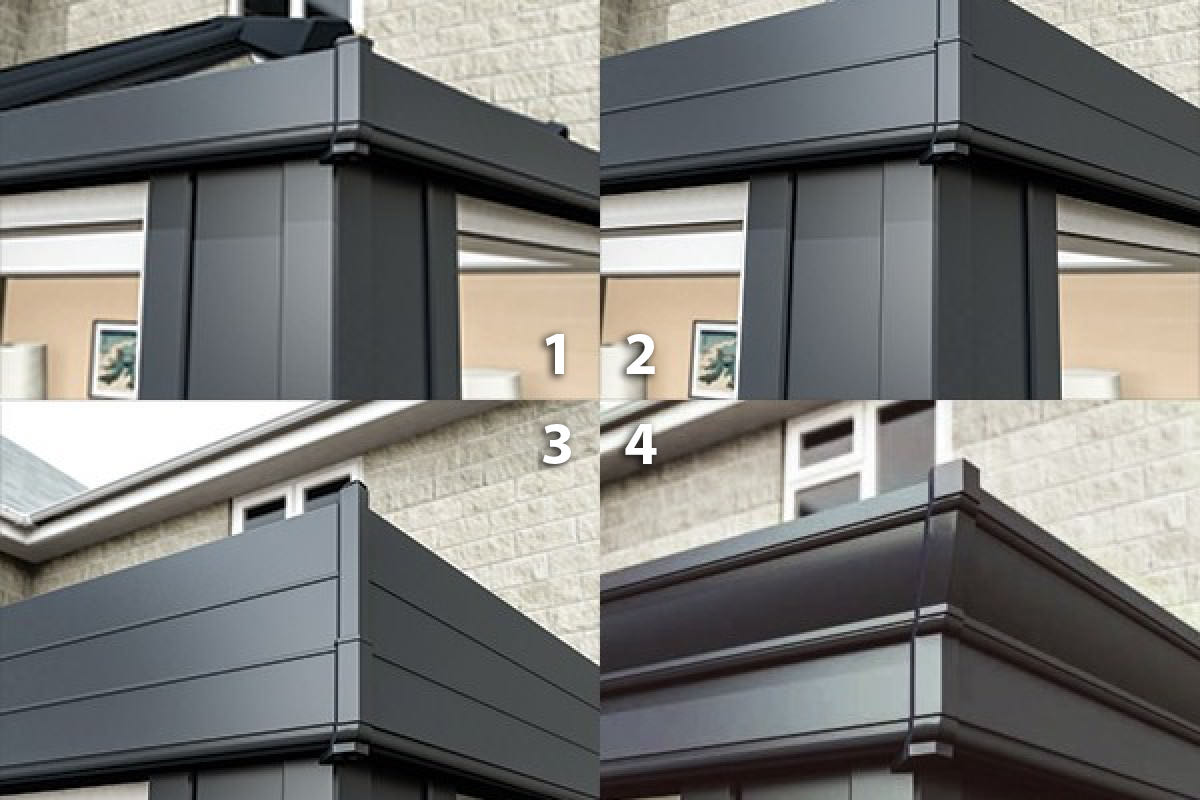

Decorative Cornices

  1. One Tier.
  2. Two Tier.
  3. Three Tier.
  4. Contemporary Design.
Decorative Cornices Worcester Worcestershire

Ultraroof at a Glance

  1. Insulated Beams - A patented box eaves beam, filled with mineral wool cavity insulation forms the soffit structure: approx 380mm front to back depth.
  2. Aluminium framework comprises a hidden structural aluminium structure for hips, ridge, and starter bars.
  3. Structural roof panels feature mechanically fixed Kingspan Unidek Aero Structural Insulated Roof Panels, which are attached to the box eaves and structural framework.
Tiled Roof Installation Worcester Worcestershire

1

2

3

Ultraroof House Extensions

Visit our online quoting engine to get a free, instant, and highly competitive Ultraroof house extension quote. Simply input your specifications through a step by step process to get a bespoke price, or get in touch via our online contact form for more information.
